Cámaras QHYCCD
Envianos un mensaje aquí para una cotización de algún modelo de cámara en especial

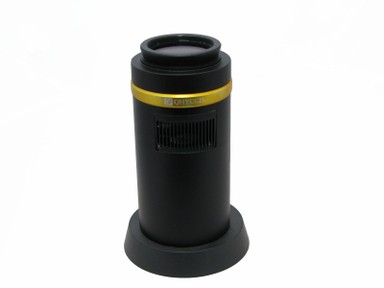

QHY8PRO APS color 6Mpix
Main Features
* Total pixel : 3110 x 2030
* Active pixels: 3032 x 2016
* Pixel Size: 7.8um x 7.8um square
* Color method: RGB BAYER film on CCD
* Effective sensor area: 28.4 mm diagonal
* Readout noise: 6-10 e @600 Kpixel/s
* QE: 60% at Green (Peak) , 50% at Blue and H.a
* Microlensing on chip
* Progressive Scan
* ABG: -110dB
* 16bit ADC with CDS and Preamp
* USB2.0 High Speed interface
* Build in temperature sensor
* DC201 with TEC controller/Regular
* Ultra small size suitable for primary focus imaging and Hyperstar
* Weight: 400g
Windows XP, vista, win7
QHY10 APS color 10Mpix
Main Features
* Total pixel : 3964 x 2712
* Active pixels: 3900 x 2616
* Pixel Size: 6.05um x 6.05um square
* Color method: RGB BAYER film on CCD
* Sony Super HAD CCD sensor ICX493AQA
* Readout noise: 8-10 e- @600 Kpixel/s
* System Gain: 0.7e-/ADU
* Fullwell:45ke-
* Support Binning: 1*1,2*2,4*4
* Download speed: 18sec/4sec for full image
* Preview speed: 1sec for 4*4binning image
* One 2*2binning ROI mode to increase the focus speed
* Microlensing on chip
* ABG: -100dB
* 16bit ADC with CDS and Preamp
* USB2.0 High Speed interface
* Two Stage TEC, Low power consumption
* Build in Active Fan
* Max Delta T=45 degree below ambient
* Low Power consumption: 13Watte @ 50% TEC power
* Center and Tilt Adjustable construction
* Build in temperature sensor
* DC201 with TEC controller/Regular
* Ultra small size suitable for primary focus imaging and Hyperstar
* Weight: 400g

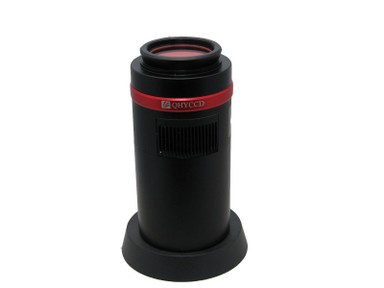

QHY12 APS color 14.2Mpix
Main Features
* Total pixel : 4640 x 3160
* Active pixels: 4610 x 3080
* Effective Area: 24mm*16.4mm
* Pixel Size: 5.12um x 5.12um square
* Color method: RGB BAYER film on CCD
* Sony Super HAD CCD sensor
* Readout noise: 8-10 e- @600 Kpixel/s
* System Gain: 0.5e-/ADU
* Fullwell:32ke-
* Dynamic Range: 71dB
* Support Binning: 1*1,2*2,4*4
* Download speed: 25sec/6sec for full image
* Preview speed: 2sec for 4*4binning image
* Microlensing on chip
* ABG: -100dB
* 16bit ADC with CDS and Preamp
* USB2.0 High Speed interface
* Two Stage TEC, Low power consumption
* Build in Active Fan
* Max Delta T=45 degree below ambient
* Center and Tilt Adjustable construction
* Build in temperature sensor
* DC201 with TEC controller/Regular
* Ultra small size suitable for primary focus imaging and Hyperstar
* Weight: 400g

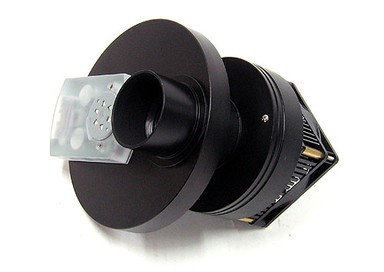

QHY9 mono 8.6Mpix
Main Features
* Total pixel : 3448*2574 (8.9mega pixel)
* Effective pixel: 3358*2536 (8.6mega pixel)
* Active pixels: 3326*2504(8.3mega pixel)
* Pixel Size: 5.4um*5.4um
* FullWell: 25.5Ke-
* Imager Size : 17.96mm (H) x 13.52mm (V) 4/3inch
* Readout noise: 8e- to 10e-(Typic @1Mpixel/s)
* Preview Speed: 3Mpixel/s (3sec download time)
* Download Speed: 1Mpixel/s (9sec download time)
* Peak QE: 56% @540nm 48%@Ha
* Microlensing on chip
* ABG: 1000X
* 16bit ADC with CDS and Preamp
* USB2.0 High Speed interface
* Build in 32MBytes SDRAM buffer
* Support Binning: No Bin, 2*2,3*3,4*4
* Communication port to QHY color wheel
* Improved 2-Stage TEC cooling -50 from ambinet
* Improved Heat Sink For KODAK CCD
* Build in Temp sensor and 16bit high presion ADC
* DC201 DC adapter & TEC Controller, Regulated
* Build in Mechanical shutter for Full Frame CCD
* Fully Airproof with Two 4.0mm Air Socket
QHY5 guider mono/color 1.3Mpix
Main Features
* Sensor: Micron 1/2inch MT9M001
* Active pixels: 1280*1024
* Pixel Size: 5.2um x 5.2um square
* Mono sensor and Color sensor available
* Peak QE=52%(Color) or 56%(Mono)
* USB2.0 High Speed 24Mpixel/s
* 15FPS@1280*1024 50FPS@640*480
* Uncompressed Video data
* Builin in Guide Port Guide port, Optic isolated
* Progressive Scan, ROI support
* Telescope Interface: M42/0.75
* Filter interface: M28.5/0.5 for 1.25inch Filter
* Size: 64mm diameter 26.5-32mm length

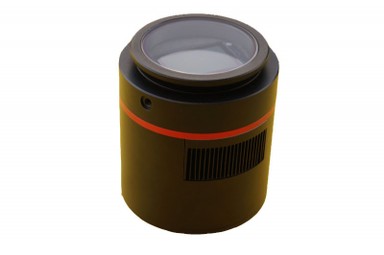

QHY11 mono 11Mpix
Main Features
* Total pixel :4072*2720
* Active pixels:4032*2688 11Mpixels
* Pixel Size: 9.0um x 9.0um square
* 36mm*24mm imager size
* Readout noise: 12-14e- @1Mpixel/s
* Preview Speed: 3Mpixel/s
* Peak QE: 50%
* FullWell: 55-60Ke-
* Microlensing on chip
* Progressive Scan
* ABG: 1000X
* 16bit ADC with CDS and Preamp
* USB2.0 High Speed interface
* 2-Stage TEC cooling
* Build in 32MByte SDRAM buffer
* Build in temp sensor
* DC102 DC adapter & TEC Controller Supported
* Fully Airproof with 4.0mm Air Socket
QHY IMG2PRO
Main Features
* Active pixels: 1392 x 1040
* Effective Area: 10.2mm*8.3mm
* Pixel Size: 6.45um x 6.45um square
* Sony EXView HAD CCD sensor
* Readout noise: 6 e- @600 Kpixel/s
* System Gain: 0.4e-/ADU
* Fullwell:28ke-
* Dynamic Range: 72dB
* Support Binning: 1*1,2*2,4*4
* Download speed: 3sec/0.5sec for full image
* Preview speed: 0.2sec for 4*4binning image
* Microlensing on chip
* ABG: -110dB
* 16bit ADC with CDS and Preamp
* USB2.0 High Speed interface
* Two Stage TEC, Low power consumption
* Build in Active Fan
* Max Delta T=45 degree below ambient
* Center and Tilt Adjustable construction
* Build in temperature sensor
* DC201 with TEC controller/Regular
* Ultra small size suitable for primary focus imaging and Hyperstar
* Weight: 400g

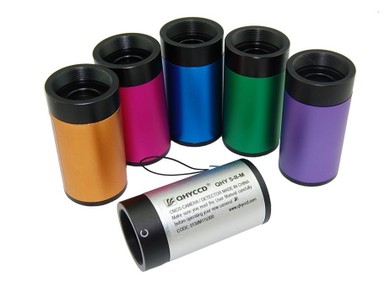

QHY5L-II
The QHY5L-II's high sensitivity and low noise is another highlight in QHY5-II series. With unbelievable 74% QE QHY5L-II's sensitivity is even exceed many CCD camera's. The readout noise is quite as low as 6 electrons. The sensor's On-chip FPN(Fixed pattern Noise) calibration function solved the major problem of the CMOS technology. Image is clear and uniform even under high gain. With these advantage, QHY5L-II makes outstanding image quality for planetary imaging, guiding, deep sky imaging and all sky camera.

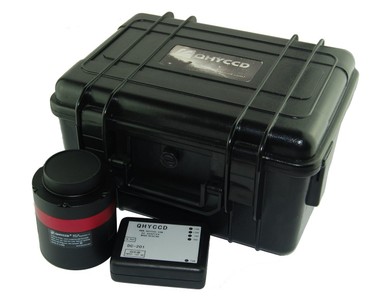

QHY21/QHY22/23 High QE
Main Features
CCD readout Type: Progressive Scan
FullWell: 15Ke- to 20Ke-
Peak QE:79% @550nm >60%@Ha,70%@450nm
ABG:-105DB
Download Speed: 1.25Mpixel/s
Preview 4*4 Binning: 4.4Mpixels
Readout noise: 5e-(Typic @1.25Mpixel/s)
Support Binning: 1X1,2X2,4X4
System Gain: 0.25 to 0.3 e-/ADU
Microlensing on chip
16bit ADC with CDS and Preamp
USB2.0 High Speed interface
Colorwheel Communcation port: 4PIN
2-Stage TEC cooling: -45 from ambinet
DC201 DC adapter & TEC Controller, Regulated
Weight: 470g(not inludes the C-mount)
Size: D=77mm Length=83mm
Removable silicon gel tube connection
Optic window Anti-drew heater: Build in
Global Electric shutter: Yes
Back Focus: See Digram
Power consumption: 3.5W(Zero Cooling) 12.8W(50% Cooling) 25.8W(100% Coolling).
Build in Active Cooling Fan
